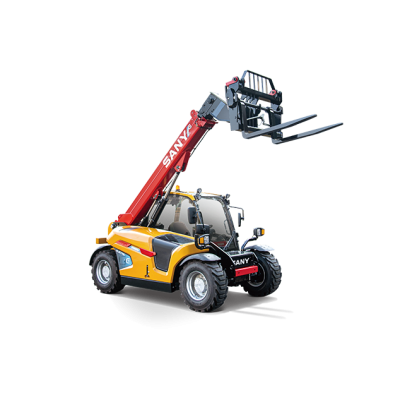

Sany STH625 Telehandler

The Sany STH625 telescopic loader:
More features, more possibilities.
Performance and efficiency
at the highest level.

+ ROPS / FOPS certified cabin (ISO 3471 / 3449)
+ Fast and smooth multifunction boom control
+ Three steering modes: 4WS, 2WS, and Crab for ultimate manoeuvrability

Features
Engine: Deutz Stage V
Rated: power 55.4 kW
Maximum lifting height: 6 m
Maximum load capacity: 2.500 kg

ENGINE
Rated power: 55.4 kW

PERFORMANCE PARAMETERS
Maximum lift capacity: 2500 kg
Lift capacity at maximum height: 2.000 kg
Lift capacity at maximum reach: 800 kg
Lift height: 6.000 mm
Carriage crowd angle: 12°
Carriage dump angle: 117°
Outside turning radius (4WS): 3.350 mm
Auxiliary hydraulic flow: 80 l/min
Auxiliary hydraulic pressure: 270 MPa
Noise at driving position (55 kW): 76 Lpa
Noise to environment (55 kW): 104 Lwa

AFMETINGEN
Length to front of carriage: 4.000 mm
Overall width: 1.850 mm
Height over cab without beacon: 1.920 mm
Height over cab with beacon: 2.010 mm
Wheelbase: 2.390 mm
Overall cabin width: 960 mm
Ground clearance: 255 mm
Turning radius over tyres: 3.350 mm
